Talbert Double Drop & Oil Field Trailers

Talbert Manufacturing, Inc. is a world-class trailer manufacturer. Since 1938 Talbert has been trusted by a wide variety of commercial, military, government, aerospace, and energy applications as well as inner plant & material handling movers and manufacturing systems.

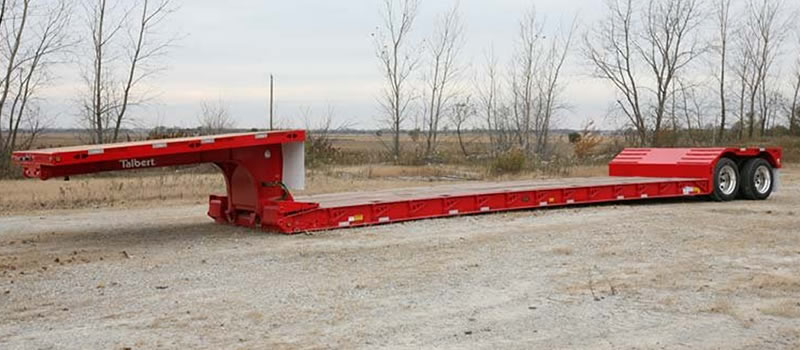

TALBERT 30-55 SRG DOUBLE DROP TRAILER

SPECIFICATIONS

Length	2-Axle: 48ft., 3-Axle: 52ft. 2in.
Deck Length	30 ft.
Deck Height	Loaded: 18 in
Weight	Starting at 14,920 lbs
Capacity	30 – 55 ton evenly distributed

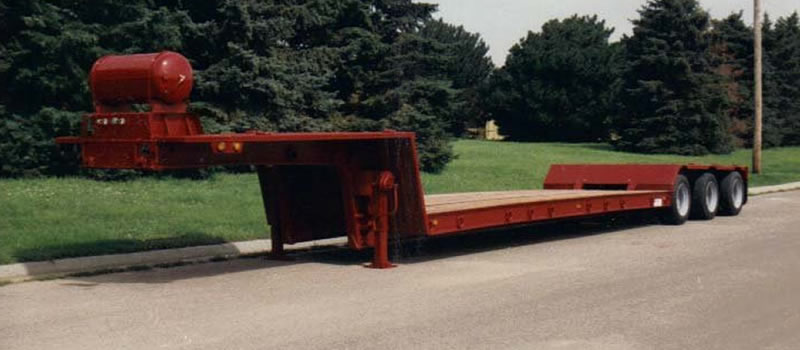

TALBERT 30-55 FG DOUBLE DROP TRAILER

SPECIFICATIONS

Length	2-Axle: 48ft., 3-Axle: 52ft. 2in.
Deck Length	30 ft.
Deck Height	Loaded: 18 in.
Weight	Starting at 14,920 lbs.
Capacity	30 – 55 ton evenly distributed

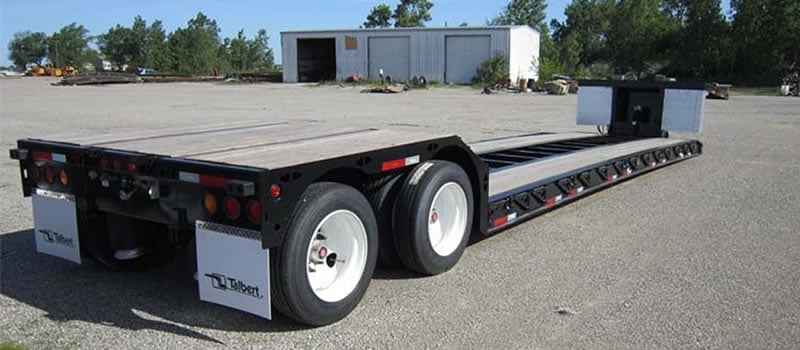

TALBERT 30-55 HRG DOUBLE DROP TRAILER

SPECIFICATIONS

Length	2-Axle: 47ft. 6in., 3-Axle: 51ft. 8in.
Deck Length	29 ft.
Deck Height	Loaded: 18 in.
Weight	Starting at 14,920 lbs.
Capacity	30 – 55 ton evenly distributed

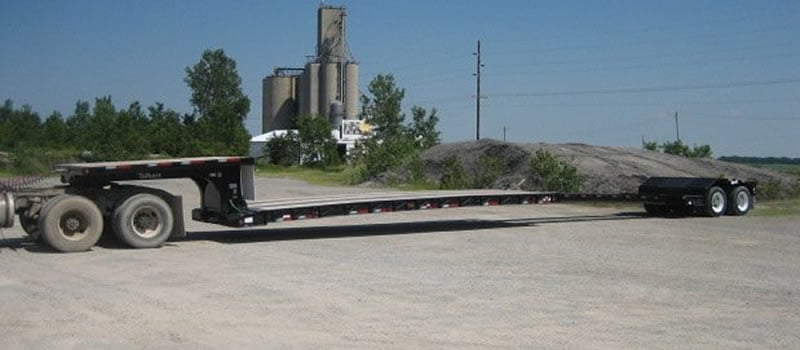

TALBERT 35SRG EXTENDABLE TRAILER

SPECIFICATIONS

Length	2-Axle: 47ft. 6in., 3-Axle: 51ft. 8in
Deck Length	29 ft.
Deck Height	Loaded: 18 in.
Weight	Starting at 14,920 lbs.
Capacity	30 – 55 ton evenly distributed

TALBERT DROP DECK OIL FIELD TRAILER

SPECIFICATIONS

Length	48 and 53 ft.
Width	8 ft. 6 in.
Deck Height	35 – 42 in. loaded
Weight	Starting at 27,150 lbs
Capacity	110,000lbs. dist., 70,000lbs. in 10ft.

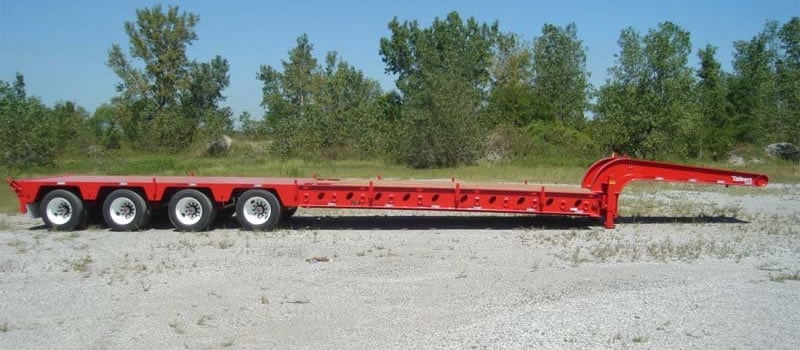

TALBERT 60FG OIL FIELD TRAILER

SPECIFICATIONS

Length	56 ft. 3 in.
Deck Length	42 ft. (to front of roller)
Deck Height	40 in.
Deck Width	8 ft. 6 in.
Weight	27,160 lbs.
Capacity	120,000 lbs. Evenly Distributed

TALBERT 65FG OIL FIELD TRAILER

SPECIFICATIONS

Length	59 ft. starting
Width	8 ft. 6 in.
Deck Height	35 – 42 in. loaded
Weight	31,100 lbs. starting
Capacity	120,000 lbs. in 16 ft.
